What's SHR ?
SHR=Super Hair Removal,it's a revolutionary technology of hair
removal which is having a sweeping success. (adopt technology
AFT,EDF)
SHR combines laser technology and the benefits of the pulsating
light method achieving practically painless results.
SHR combined with"In Motion"represents a breakthrough in permanent
hair removal with light technology. The treatment is more pleasant
than with the conventional systems and your skin is better
protected.
The theory
Advanced technologies: bipolar RF (radio frequency) + IPL(intense
pulsed light), can be used together or separately. Perfect
treatment results can be expected. The RF energy can penetrate into
the dermis layer and directly deliveries to the hair follicle on
skin below 8 mm. Integrating with the IPL energy, good treatment
result will show you in short time. In addition,
This thermal energy stimulates production of new collagen and
re-arrange collagen tissue ,The subsequent heating further tightens
the skin tissue and reduces wrinkles . the most importance is that
the IPL with contact cooling system inside is effective on the
epidermis that greatly reduce the pain during the treatment. The
stable performance makes the safety in the whole process

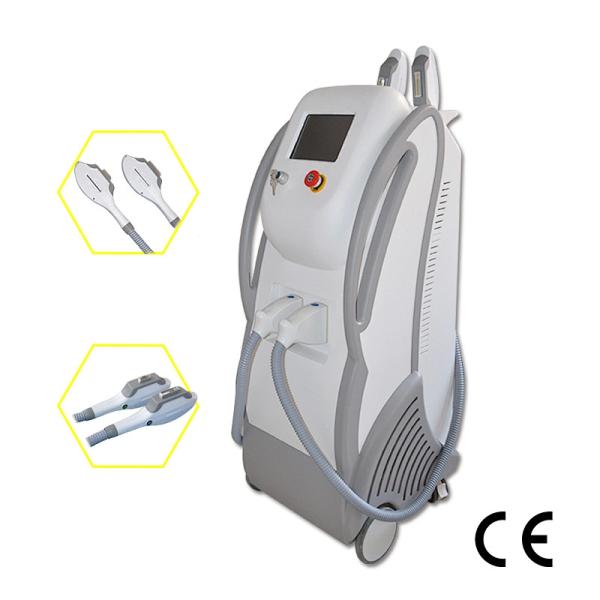

Elight machine with two handles
IPL big crystal spot size 15x50 for hair removal with super
stronger energy ,
IPL +RF for skin rejuvenation ,shrink pores ,wrinkle removal. photo
rejuvenation with super small spot size 12x12
IPL for acne treatment and vascular lesions, pigment removal,
epidermis
Speckle ,fleck aging spot ,chloasma etc .
IPL + RF skin tightening, face lifting and body shaping .
Standard filter include :
690-1200nm: Hair Removal (Skin Type III) and Breast enhance
640-1200nm: Hair Removal (Skin Type I,II,III,IV) ; Wrinkle Removal
590-1200nm: Pigmentation and Vascularity; Skin Rejuvenation
530-1200nm: Skin Rejuvenation; Superficial Vascular Lesions
480-1200nm: Light Pigmentation, Acne
Advantage and benefit of shr ipl vertical
1, IPL+ RF is more effective on dark skin and blonder hair than
unique ipl or laser machine

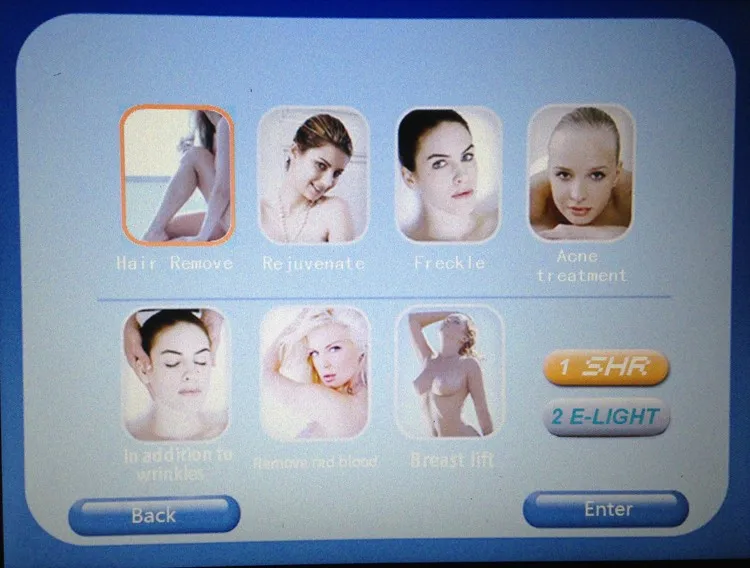

2, Simple operation menu .

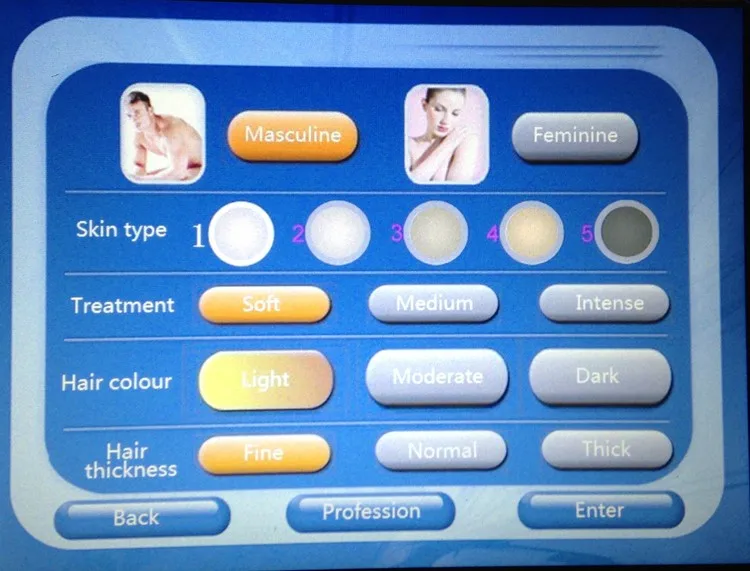

our elight menu come with skin type(I,II,III,IV, V,VI) Hair color
.hair thickness .
the operator only need choose the Corresponding skin type and hair
color when they do the treatment
no need to change the parameter like pulse width,pluse number etc .
it is more easy and simple for the operator to use it .
3. Our elight machine can deal with all kinds of skin type and hair
color .
Ipl sapphire handle come with super stronger energy output .
Big spot 15*50 which is very good for large area hair removal .
Elight handle with 5 filters which can do small parts of hair
removal .
4. The fast connector of ipl handle ,it is more convenient for the
operator to install .
5. Excellent cooling system inside of machine which can make sure
our machine have a long working time each day .
Normally .our stand Elight machine can work 5 to 8 hours without
stop
Parameters :
| Display | 8.4 inch touch display |
| Two Handles | E light handle with 5 filters, 12*12mm ; 12x30 for your option , IPL Handle handle with 15*50mm |
480nm-1200nm for acne,vascular 530nm-1200nm for skin rejuvenation ,wrinkle removal 590nm-1200nm for pigmentation , remove age spots ,sun spots, 640nm-1200nm for hair removal ,depilation 690nm-1200nm for red face ,red nose, spider veins, breast enhance 430nm,560nm, 580nm,695nm for your option (any customized wavelength
from 300nm to 1200nm ) |
| Energy | 1-50J/cm2(IPL) 1-50J/cm2(Elight) 1-50J/cm2(RF) |
| RF frequency | 10MHZ |
| Pulse width | 0.1-9.9ms |
| Pulse number | 1-99 |
| Pulse delay | 1-99ms |
| Shot period(Frequency) | 1-3 second adjustable |
| Lamp longevity | 100,000shots |
| Cooling system | Wind+water+semiconductor+contact cooling |
| Power | 2000W |
| Package include | 1. Main Machine X 1 2. E-light Handle X 1 3. IPL Handle 4. Filter X 5 5. Protective Goggles X 2 6. Funnel X 1 7. Foot Switch X 1 8. English manual/instructions,C |
